Allegra 64R 桌上型冷凍離心機
設計精簡、高速性能優異
為可靠和結果一致性設計的 Allegra 64R 桌上型離心機可進行高速分離，機器體積小。
- 64,400 x g (30,000 rpm)
- 快速的加速和減速時間，以便進行更快的旋轉
- 亞細胞成分、蛋白分離和純化、病毒和片段提取的首選
* 本產品僅用於工業及科研，不用於臨床診斷。
特點
四大優點
- 離心力大、轉速高，打破亞細胞組分分離應用的機型門檻
- 靈活性高，備有 13 種轉子，包括 11 種定角轉子，2 種水平轉子，可使用 250μL 至 85mL 離心管
- 主機體積小，只佔桌面積約 0.4m2
- 微處理機控制，數字顯示，觸碰式按鍵操作
微控精準
- 離心速度以 100rpm 步進，精度 ±50rpm
- 可設定 9 小時59 分鐘/ 連續離心/ 短暫離心
- 10 種加速/ 減速率設定
- 實時 RPM/RCF 互相換算
高效冷卻系統
- 採用環保制冷劑，符合環保要求
- 溫度範圍由- 20℃ 到 40℃
安全可靠
- 備有密封水平轉子 (BioSafety) 防止工作人員受樣品污染
- 自動監控過溫，不平衡，超速及轉子監別系統
- 採用無碳刷變頻馬達，無後顧之憂
- 自動安全門鎖及機身精鋼環設計
- 操作寧靜，噪音量低於 65 dB
Explore Allegra 64R Models
Related Parts for Allegra 64R

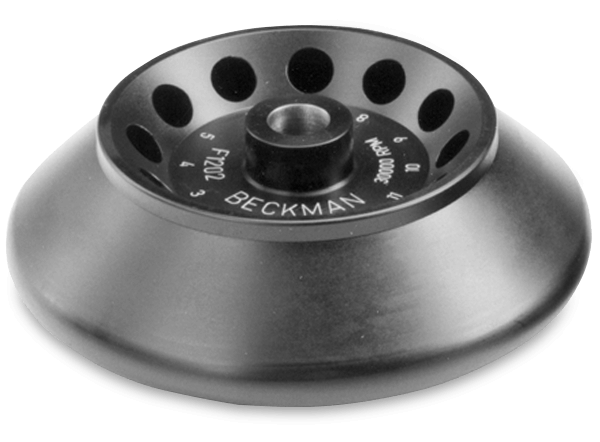

F1202 Fixed-Angle Aluminum Rotor 12x2.0 mL, 30,000 rpm, 64,400 x g
F1202 Fixed-Angle Rotor, Aluminum; Major applications: Pellet subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. For use in Allegra 64R and discontinued Avanti 30 centrifuges.
F2402H Hermetically-Sealed Fixed-Angle Rotor
F2402H Rotor Assembly, Fixed-Angle, Bio-certified, Aluminum; Major applications: Pelleting subcellular organelles, nucleic acids, viruses, bacteria, mitochondria, chloroplasts, or algae. 1" cellpadding, 4" cellspacing, 0" class. Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R; Max RPM 26,000, 14,500, 15,500, 16,000, 18,000; Max RCF, 61,970, 19,309, 22,065, 23,511, 29,756. Notes: Maximum speed/RCF are different in the Allegra 64R centrifuge, Allegra X-30 Series centrifuges, and the Allegra X-22; Series centrifuges. This rotor is rated at a lower speed in the Allegra X-30, X-30R, X-22, X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-30 Series, Allegra® X-22 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

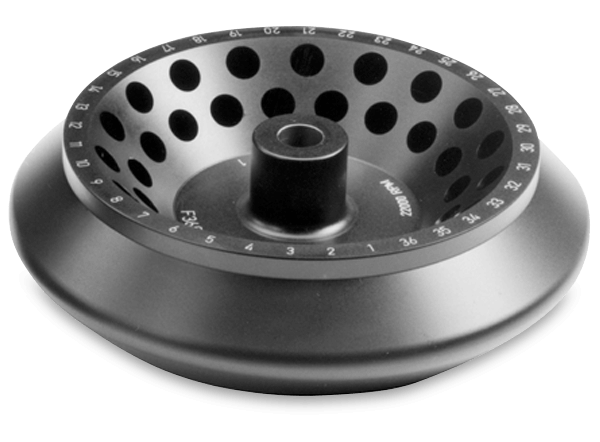

F3602 Fixed-Angle Aluminum Rotor 36 x 2 mL, 22,000 rpm, 47,618 x g
F3602 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, nucleic acids, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 36 Tube Volumes: 1.5/2.0 mL microcentrifuge tubes; Max rpm: 22,000 rpm; Max Force: 46,530 x g. For use in Allegra 64R and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
F1010 Fixed-Angle Rotor
F1010 Fixed-Angle Rotor (35 Angle), Aluminum. Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. 1" cellpadding, 4" cellspacing; WIDTH: 524px; HEIGHT: 100px; Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R. Max RPM 26,000, 14,500, 15,300, 16,000, 18,000. Max RCF 57,440, 17,896, 29,926, 21,791, 27,579. Notes: Maximum speed/RCF are different in the Allegra 64R, Allegra X-22 and Allegra X-30 centrifuges. This rotor is rated at a lower speed in the Allegra X-30 and X-30R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, Allegra X-30 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
F0630 Fixed-Angle Rotor
F0630 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Allegra 64R; Allegra X-22; Allegra X-22R; Allegra X-30; Allegra X-30R; Max RPM 26,200; 14,500; 15,300; 16,000; 18,000; Max RCF, 59,860, 18,367, 20,450, 22,364, 28,305. For use in Allegra 64R, Allegra X-22, X-30 Series centrifuges, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

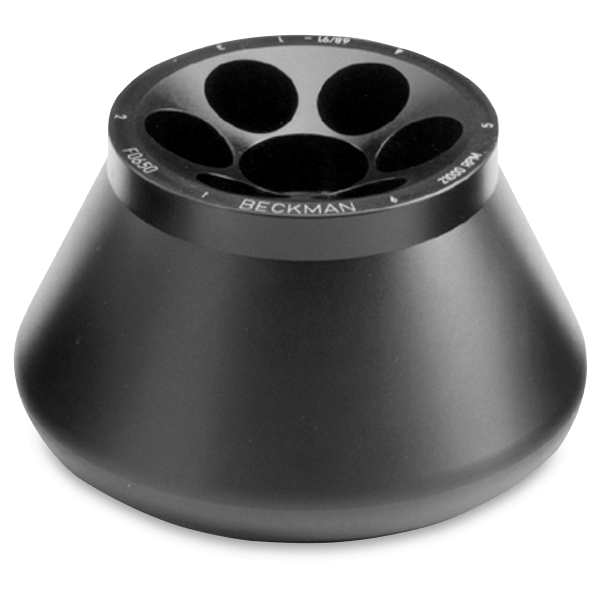

F0650 Fixed-Angle Rotor
F0650 Fixed-Angle Rotor, Aluminum, Major applications: Density gradient separations of erythrocytes, cell lysate fractions, granules, as well as different separations of DNA, proteins, and viruses. Places: Tube Volumes: 50 mL Round-Bottom tubes; Max RPM: 21,000 rpm; Max Force: 41,400 x. For use in Allegra 64R and discontinued Avanti 30 centrifuges.
F0850 Fixed-Angle Rotor
F0850 Fixed-Angle Rotor, Aluminum; Major applications: Density gradient separations of erythrocytes, cell lysate fractions, granules, as well as different separations of DNA, proteins, and viruses. Places: 8 Tube Volumes: 50 mL microcentrifuge tubes 1", cellpadding 4", cellspacing 0", class visitable. Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R; Max RPM 16,500, 9,000, 10,000, 9,000, 11,400. Max RCF, 29,220, 8,528, 10,528, 8,528, 13,682. Notes: Maximum speed/RCF are different in the Allegra 64R, Allegra 30 Series; centrifuges and the Allegra X-22 Series centrifuges. This rotor is rated at a lower speed in the Allegra X-22 and X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, Allegra X-30 Series and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

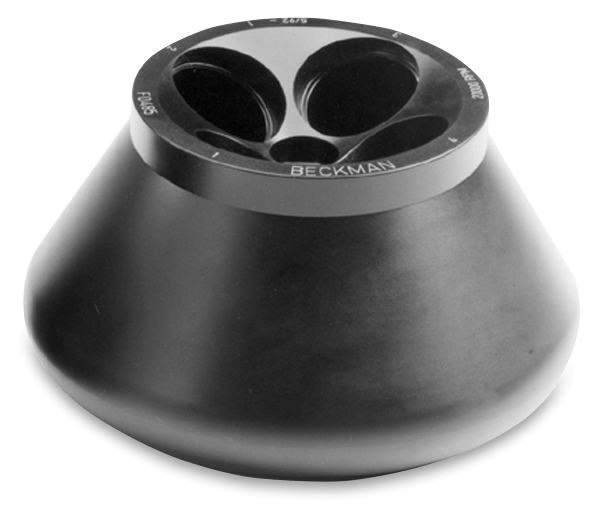

F0485 Fixed-Angle Rotor
F0485 Fixed-Angle Rotor, Aluminum, Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 4, Tube Volumes: 85 mL tubes, Max RPM: 20,000, Max RCF: 40,240 x g. For use in Allegra; 64R and discontinued Avanti; 30 centrifuges.
F0685 Fixed-Angle Rotor
F0685 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 6; Tube Volumes: 85 mL microcentrifuge tubes 1", cellpadding 4", cellspacing 0", class visitable". Allegra 64R, Allegra X-22, Allegra X-22R; Max RPM 15,500, 8,000, 10,000; Max RCF 26,320, 6,953, 10,864.
Notes: Maximum speed/RCF are different in the Allegra 64R centrifuge and the Allegra X-22 centrifuge. This rotor is rated at a lower speed in the Allegra X-22 and X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
C1015 Fixed-Angle Conical Tube Rotor, Aluminum
C1015 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting of subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae.
C0650 Fixed-Angle Conical Tube Rotor, Aluminum
C0650 Fixed-Angle Rotor, Aluminum; Major applications: General pelleting of cells, bacteria, and food products; separation of proteins, viruses, and subcellular fractions; phase separation; and binding studies. Places: 6 Tube Volumes: 50 mL conical tubes 1" cellpadding 4" cellspacing 1" style; WIDTH: 497; HEIGHT: 145px; Max RPM; Notes: Maximum speed/RCF are different in the Allegra; 64R centrifuge, Allegra; X-30 Series centrifuges, and the Allegra; X-22 Series centrifuges. This rotor is rated at a lower speed in the Allegra; X-22 and X-22R centrifuges, so forces and k factors are different. For use in Allegra; 64R, Allegra; X-30 Series, Allegra; X-22 Series, and discontinued GS-15 Series, Allegra; 21 Series and Avanti; 30 centrifuges. Tubes and bottles not included.
H6002 Fixed-Angle Rotor, Aluminum- 84 x 1.8 mL, 12,200 rpm, 12,400 x g
H6002 Horizontal Bowl Rotor, Aluminum; Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 60 Tube Volumes: 1.5/2.0 mL microcentrifuge tubes. Max rpm: 12,200 rpm; Max RCF: 12,400 x g. For use in Allegra; 64R and discontinued Allegra 21 Series and Avanti 30 centrifuges.
